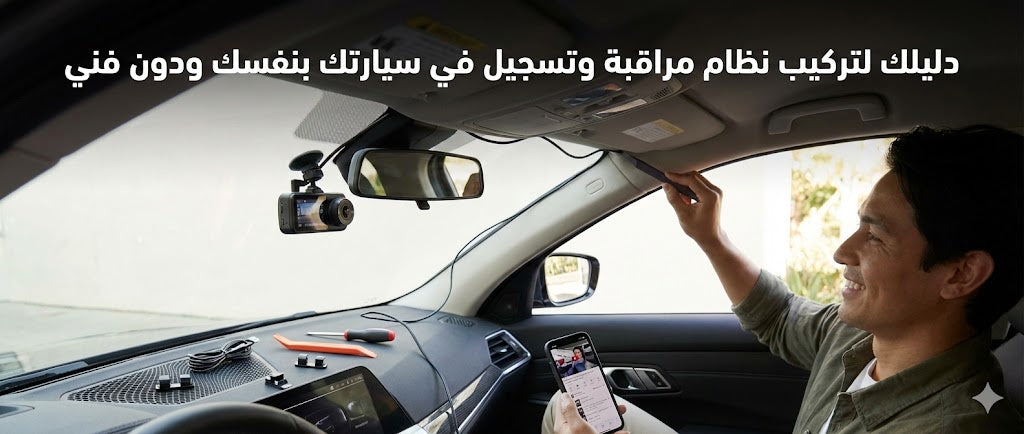

Your guide to installing a monitoring and recording system in your car yourself without a technician
Self-reliance in equipping your vehicle with a visual documentation system is a smart step to ensure work quality and save costs. Manual installation allows you to understand the details of your car's electrical system, which facilitates future maintenance operations without the need to visit service centers.
This requires going beyond temporary solutions like dangling wires or occupying primary power ports chaotically. The focus here is on integrating the camera professionally as if it were part of the original factory equipment, while considering all aspects of electrical safety.
We will use the Hoco DV4 model as an applied example due to its commonality and good technical specifications, but the rules we will discuss apply to the vast majority of dash cams available in the market. The goal is to reach a clean, safe, and stable installation.
Why Connecting to the Fuse Box is the Ideal Choice
Many rely on the cigarette lighter as an easy and fast power source, but it's a choice that carries many operational negatives. Direct connection to the fuse box frees up power ports in the cabin for other uses like charging phones or operating accessories.
Direct connection ensures complete hiding of all cables, which maintains the aesthetics of the interior cabin and prevents driver distraction. Visible wires are not only visually annoying but may pose a danger if they interfere with control tools while driving.
More importantly is activating the parking monitoring feature. This feature requires a continuous power source even when the engine is stopped, which the cigarette lighter does not provide in most modern cars that cut the current as soon as the key is removed.
The Difference Between Accessory Power and Continuous Battery Power
Professional installation requires understanding the difference between the "ACC" line and the "BATT+" line. The accessory line or ACC is the line where current flows only when the car is on, and it is responsible for turning on the camera and starting recording during normal driving.
In contrast, the BATT+ line provides continuous current even while the car is parked. This line is responsible for saving camera settings like time and date, and feeding the smart monitoring mode when sensing motion or vibration while the car is parked.
The Importance of Using a Safety Lead for the Car Battery
Some fear draining the car battery when connecting directly, and here comes the role of the smart "Hardwire Kit." This lead contains a control unit that constantly monitors battery voltage and automatically disconnects the camera if the voltage drops below a certain limit.
This mechanism ensures enough power remains in the battery to start the car engine in the morning, even if the camera continues to work for long hours during the night. You must ensure the voltage switch in this lead is set to match your car's battery type and capacity.
Preparing Tools and Determining the Strategic Installation Site
Before starting any actual work, car tools specifically for removing interior trims must be prepared. Using dedicated plastic Pry Tools prevents scratching panels or breaking sensitive plastic clips, which is fundamental in self-maintenance.
You will also need a circuit tester (Test Light) or a Multimeter to accurately identify fuses. Relying on guesswork when dealing with car electricity may lead to severe damage to the car's computer or sensitive systems.
Choosing the Installation Location and Avoiding Sensor Interference
The ideal place for the camera lens is directly behind the rearview mirror. This location ensures wide road coverage from the center, while simultaneously hiding the camera body from the driver's view so it doesn't cause any vision obstruction.
Attention must be paid to the presence of any large plastic covers behind the mirror containing rain sensors or "ADAS" radars. The camera should be installed slightly below these covers to ensure its field of vision is not blocked, while ensuring the lens falls within the wipers' operating range.
Cleaning the Surface and Preparing the Adhesive
Good adhesion depends entirely on glass cleanliness. Use medical alcohol and lint-free wipes to clean the installation area carefully to remove any oils or glass polish residues that may weaken the adhesive's effectiveness.
In hot areas, it is preferable to install the camera while the car is in the shade, or turn on the AC to cool the glass slightly before sticking. Extreme heat of the glass may lead to the adhesive spoiling as soon as it touches the surface, causing the camera to fall later.
Cable Extension Techniques and Hiding Them Inside Pillars
The stage of passing the wire starts from the camera upwards towards the roof edge. Use the plastic tool to gently push the wire inside the roof lining, leaving a very small slack distance at the camera to facilitate disconnecting or moving it when necessary.
The biggest challenge lies in the A-Pillar. In cars equipped with curtain airbags, it is strictly forbidden to pass the wire over the pillar cover or in front of it, because that might impede the airbag inflation or turn the wire into a dangerous projectile during accidents.
Safe Handling with Side Airbags
The correct way is to partially or completely remove the side pillar cover. Pass the camera wire behind the airbag inflation tube and secure it using plastic Cable Ties with the car's original electrical harness.
This procedure ensures the wire won't move from its place and won't interfere with the safety equipment's path. Accuracy in this step is the deciding standard between amateur installation and installation that observes global industry safety standards.
Descending to the Fuse Box via Side Rubber
After bypassing the pillar, continue passing the wire downwards through the rubber surrounding the door frame. This rubber can be easily pulled and the wire passed in the space behind it then reinstalled, providing a hidden and safe path all the way to the area below the dashboard.
Ensure there is no pressure or pinching of the wire when closing the door or reinstalling plastic parts. Compressed wires may suffer internal cutting over time and vibrations, causing a short circuit or the camera to stop working.
Identifying Appropriate Fuses and the Electrical Connection Process
Accessing the fuse box requires understanding the diagram usually found on the back of the cover or in the owner's manual. Look for fuses for non-vital accessories like the cigarette lighter, rear wipers, or sunroof to use as connection points.
Completely avoid fuses for safety and motion systems like airbags, ABS, fuel pump, or the ECU engine computer. Tampering with these circuits may lead to disabling the car or errors appearing on the dashboard.
Using a Circuit Tester to Determine Polarity
Connect the tip of the Test Light to the car's metal body (Ground). While the car is off, test candidate fuses for the BATT+ battery line. The fuse that lights the lamp while the car is off is a permanent fuse suitable for the memory and monitoring line.
To identify the ACC operation line, turn the car key to the operational position without starting the engine. Look for a fuse that lights only in this position and goes out when the key is removed. This will be the power source for operating the camera while driving.
Installing Fuse Taps
Do not wrap bare wires around fuse legs; this is a dangerous and unstable practice. Use appropriate "Fuse Taps" for your car's fuse size (Micro, Mini, Standard). These taps allow installing two separate fuses, one for the original circuit and the other for the camera.
The original fuse must be placed in the bottom slot near the tap legs, and the new fuse (usually 3 or 5 amps) in the top slot for the camera wire. This arrangement is necessary to ensure each circuit is protected independently.
Grounding the System Correctly
The final step in the electrical connection is linking the black wire (GND) to the car body. Look for an unpainted metal bolt connected directly to the car frame near the fuse box. Bolts connected to plastic parts do not provide grounding and the electrical circuit will not be complete.
Loosen the nut slightly, insert the wire's metal ground connector, then retighten the nut firmly. Looseness in this connection is the primary cause of intermittent recording problems or the camera suddenly restarting.
Challenges of Installing the Rear Camera and Passing Cables
Installing the rear camera requires double effort due to the long distance and the need to pass through the flexible "hoses" connecting the car roof and the rear trunk door, especially in hatchbacks and SUVs.
Use a rigid wire or "pulling tape" to pass the camera cable inside the rubber hose. Spraying a little silicone spray inside the hose facilitates the cable head's sliding and protects it from tearing during pulling.
Adjusting the Rear View Angle
Ensure the rear camera lens is mounted exactly in the upper middle of the glass, and that the glass heat lines do not cut the image directly in front of the lens. Upside-down installation is a common mistake, so check the image direction via the screen before final mounting.
If the camera supports parking assistance, you will need to connect the red signal wire to the reverse light. This makes the screen automatically switch to the rear camera and show assistance lines when the gear is put on R, which is a useful additional feature.
Adjusting Hoco DV4 Settings for Optimal Performance
After completing connections and starting the car, the camera will begin working. The first and fundamental step is formatting the memory card from within the camera's own settings menu, not via a computer, to ensure file system compatibility.
Choose a "High Endurance" type memory card intended for surveillance cameras, as it withstands repeated write and erase operations and high heat. Ordinary cards may fail quickly, leading to the loss of important footage when needed.
Loop Recording and G-Sensor Settings
Set "Loop Recording" to one minute or three minutes. This feature allows the camera to automatically delete the oldest files when the memory is full to record new files, ensuring continuity of work without manual intervention.
Set "G-Sensor" sensitivity to medium or low level. Very high sensitivity will make the camera lock files and protect them from erasure at every small bump or pothole, leading to the memory filling up quickly with useless files and stopping loop recording.
Periodic Maintenance and Verifying System Integrity
Installing a dash cam is not the end of the road; periodic self-maintenance is necessary. Check once a month that the camera is actually recording and that the date and time are accurate. A weak battery inside the camera may lead to file corruption if the camera doesn't close recording properly when the car is turned off.
In very hot summer seasons, it is preferable to remove the camera when parking the car under direct sunlight for long periods to protect the internal battery and sensor from thermal damage, especially if the camera is not equipped with a Super Capacitor.
Software Updates and Connection Review
Check the manufacturer's website for any firmware updates that may improve image quality or address software errors. The update process is simple and usually done by placing the file in the memory and turning on the camera.
With constant car vibrations, some ground connections or fuse taps may loosen. A quick look at the fuse box every few months to ensure the stability of connections guarantees you a reliable monitoring system that works when you need it most.
Dealing with Radio and GPS Interference
In some rare cases, cameras or their power adapters may cause interference with radio signals or navigation systems. This is often due to poor electromagnetic frequency insulation in the long power cable extending to the roof.
The solution lies in installing "Ferrite Core" pieces, which are magnetic rings placed around the power wire near the camera and near the power source. These rings act as a filter that prevents annoying frequency leakage and ensures radio signal clarity and efficient operation of other wireless systems.
