Your guide to installing a monitoring and recording system in your car yourself without a technician

Installing a dash cam in a vehicle has shifted from being just an entertainment accessory to an urgent security and legal necessity for protecting rights and documenting roads. Self-reliance in this process gives you a deeper understanding of how your car's electrical system works and ensures quality wiring.

The installation process goes beyond just sticking the camera to the glass; it is an engineering process that requires planning the power path and careful selection of mounting points to ensure the best viewing angle. We will focus here on professional methods that eliminate the need to visit maintenance centers and save you labor costs.

Determining power requirements and preferred connection type

The fundamental difference between temporary connection and permanent hardwiring

Many initially rely on the traditional cigarette lighter port to power the camera, which is an easy option but lacks aesthetic appeal and occupies a port you may need to charge phones. This option often cuts power as soon as the engine is turned off, causing you to lose monitoring features while parked.

The professional option we mean is using a Hardwire Kit. This connection allows power to be drawn directly from the fuse box, freeing up cabin ports and hiding the wires completely so the camera looks like part of the factory equipment.

The importance of permanent connection lies in activating the Parking Mode relied upon by advanced cameras such as the Hoco DV4. This mode ensures the camera continues to work in standby mode to record any vibration or movement around the car while it is parked.

The importance of understanding battery voltage and protecting it from depletion

When performing DIY maintenance to install a monitoring system connected directly to the battery, you must ensure the connection kit contains a Low Voltage Cut-off feature. This feature protects the car battery from complete depletion and ensures you can start the engine in the morning.

Most advanced Hardwire Kits come with adjustable settings to determine the minimum voltage (e.g., 11.8V or 12.0V). Choosing the correct setting depends on your car battery's age and capacity to ensure the car camera operation method works efficiently without side effects.

Engineering planning for lens location and angles

Avoiding interference with sensors and assistance systems

Choosing the installation location is not random, as modern cars are full of sensors behind the center mirror. The camera must be placed so it does not obstruct rain sensors or radar cameras for the lane departure system and automatic braking system.

It is always preferred to install the lens exactly in the center below the rear-view mirror base to ensure equal coverage of the hood from both sides. This location also reduces driver distraction and complies with traffic laws in most countries that prohibit vision obstruction.

Dealing with wiper sweep range and reflections

Make sure the camera lens is within the range cleaned by the front windshield wipers. Installing the camera in a place the wipers don't reach will make the image completely unclear in rainy weather or when the glass is dirty, rendering the recording valueless.

To deal with glass curves and dashboard reflections in the recording, it is recommended to adjust the lens so that the sky occupies only 40% of the frame and the road occupies 60%. Some cameras support CPL filters that significantly reduce glare and reflections to improve the clarity of license plate numbers.

Strategies for safely hiding cable routing

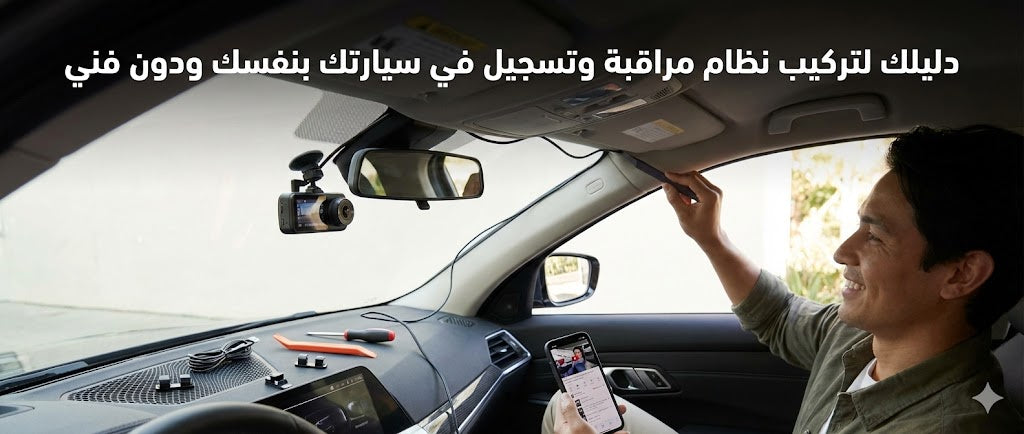

Routing cables invisibly is the difference between an amateur and a professional installation. Start by routing the wire from the camera toward the top edge of the windshield, and gently tuck the wire inside the headliner using a dedicated plastic tool to avoid scratching the trim.

Caution must be taken when reaching the A-Pillar. In cars equipped with curtain airbags, never route the wire over the airbag cover. This is a fatal mistake that could hinder airbag deployment during accidents or turn the wire into a projectile toward passengers.

The correct method requires partially removing the side pillar cover and routing the camera wire and clipping it behind the airbag along the original factory wiring harness. Use plastic Zip Ties to secure the wire and prevent any rattling sounds while driving.

How to identify the right fuses for electrical connection

Distinguishing between ACC fuse and constant power fuse

Monitoring systems usually require two power wires in addition to the ground. The first wire (ACC) is connected to a fuse that works only when the car is running, such as the cigarette lighter or radio fuse. This wire gives a signal to the camera to switch mode between normal recording and parking mode.

The second wire (VCC/BATT) needs a constant power source that is not interrupted even when the car is off, such as the interior light or central locking fuse. Using a Test Light is essential here to accurately identify the fuse type before connecting.

Using Fuse Taps to preserve original circuits

Absolutely avoid stripping wires and wrapping them directly around the fuse leg, as this is unsafe and may cause an electrical short. The ideal engineering solution is using Fuse Taps, which allow you to add a new circuit independently and safely without affecting the original fuse operation.

Ensure you choose the Fuse Tap size that matches your car's fuse box (Micro, Mini, ATO). The original fuse must be installed in the bottom slot of the tap, and the camera fuse (usually 2 or 5 amps) in the top slot to protect the recording device separately.

Techniques for accurately connecting the rear camera

Overcoming the rubber grommet obstacle

Installing the rear camera is the hardest challenge, especially in hatchbacks and SUVs. It requires routing the wire through the length of the car to the back, then passing it through the rubber Grommet connecting the car body to the trunk door.

Use a rigid extension wire (like a coat hanger) or a Snake Tool, and lubricate it slightly with liquid soap to facilitate sliding the camera cable head through the tight rubber. Failing to do this and leaving the wire exposed will lead to wire breakage and an electrical short due to repeated door closing pressure.

Determining the correct image orientation

Before permanently fixing the rear camera with adhesive, connect it and turn on the screen to check the image orientation. Many rear cameras can be accidentally installed upside down, and correcting this later might damage the defroster lines on the rear glass when removing the adhesive.

Also, ensure that the Defroster Lines do not cover the camera lens, as the high heat of these lines may affect the image sensor quality over time, in addition to blurring the vision in recordings.

Software configuration and recording quality management

The importance of formatting the memory card and choosing its type

The memory card is the weakest link in the dash cam system. You must use cards rated as High Endurance, dedicated to monitoring systems to withstand continuous write and erase cycles. Regular cards may fail within a few weeks due to high data pressure.

Format the card from within the camera settings itself and not via computer, to ensure system file compatibility and the correct creation of archive and emergency folders. Cameras like Hoco DV4 require formatting the card periodically (once a month) to maintain recording efficiency.

Adjusting G-Sensor sensitivity

The camera system contains a gravity sensor that locks the video file and protects it from automatic deletion when a crash or strong bump is sensed. Setting this sensor to very high sensitivity will lead to the memory filling up with locked files due to normal road bumps, stopping subsequent recording.

It is recommended to set the sensitivity to medium or low, so that files are only locked during real accidents or very hard braking. Review the Event Folder periodically to ensure it is not full and delete it manually if necessary.

Final steps to ensure proper grounding

The Ground Point is an element many overlook, causing camera operation issues. The ground wire (usually black) must be connected to a bolt connected directly to the car's unpainted metal chassis.

Do not connect the ground wire to plastic trim mounting bolts or insulated bolts, as this will not complete the electrical circuit. Use a wrench to loosen a nut connected to the chassis near the fuse box, place the metal wire ring, then retighten the nut firmly.

Testing voltage after installation using a Multimeter ensures current stability. The voltage should read the same as the battery reading when running. Any significant fluctuation means the grounding point is not good and the area needs cleaning from rust or paint to ensure metal contact.

Do you need special tools for trim removal?

Basic car tools for a clean process

To adopt a successful DIY maintenance style, you will need a set of plastic Trim Removal Tools. Using regular metal screwdrivers will leave visible nicks and scratches on the edges of the plastic and dashboard that reduce your car's aesthetic value.

These plastic tools are inexpensive and essential for lifting edges and passing wires without damaging the fragile plastic clips that hold trim pieces. Handling these pieces gently ensures they return to their place without annoying gaps.

Dealing with excess wiring

Dash cam wires often come with extra length to fit all car sizes. Do not cut the wires and resolder them unless you are a professional and have thermal insulation tools, as this may weaken the signal and cause image distortion.

Instead, wrap the excess wire neatly in a figure-8 shape (to reduce electromagnetic interference) and secure it with velvet fabric tape (Tesa Tape). Hide this bundle inside the side dashboard cavity or behind the fuse box cover.

The importance of wireless connectivity and phone apps

Most modern cameras rely on an internal Wi-Fi network to stream content. This feature facilitates the process of adjusting settings and directing the lens directly via the phone screen, eliminating the need to deal with small buttons and limited built-in screens on the camera.

Make sure to download the camera's official app and update the Firmware immediately upon installation. Updates often solve software issues and improve image processing algorithms at night or the accuracy of motion sensor response.

The app also allows you to download important clips to your phone immediately without needing to remove the memory card. This feature is vital in accident cases to share evidence with security authorities or insurance companies at the accident scene quickly and easily.

Periodic maintenance to ensure readiness

Your role doesn't end when installation is complete; the monitoring system needs follow-up to ensure it works when needed. The weather conditions inside the car are very harsh, as heat reaches levels that may affect the adhesive's hold or the efficiency of capacitors inside the camera.

Check the camera stability and adhesive base once every season, especially at the start of extreme summer. The type of adhesive used (usually 3M VHB) is very strong, but direct exposure to the sun for years may weaken it. Clean the glass well and replace the adhesive if you notice any vibration in the image.

Make checking the camera operation a weekly habit. Just looking at the LED indicator to ensure it is flashing (signifying recording) is enough. Discovering that the camera was stopped or the memory damaged after an accident is the worst scenario a driver can face.
